$10,089.00

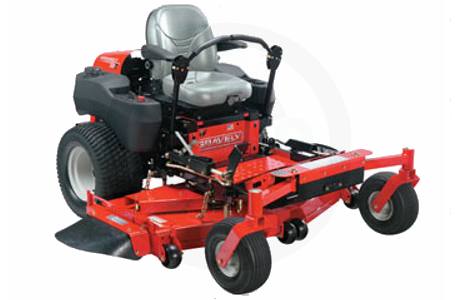

2009 Gravely 260M XDZ 27 hp Kawasaki Manual Lift
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Combining incredible power with amazing comfort is no longer a pipe dream. Welcome to the world of the Gravely 260M XDZ. This durable zero-turn mower offers you a variety of engine options to meet your specific needs and a wide array of features to enhance your mowing experience. With the exclusive X-Factor® Deck, self-adjusting belt idlers and the standard heavy duty air cleaner you will have a perfect cut every time.

    Specifications
    • Warranty: 2-year
    • Engine Manufacturer: Kawasaki® Twin
    • Engine Power: 27 hp
    • Drive System: Hydrostatic
    • Fuel Tank: 13 gal. (49 l)
    • Ground Speed (Forward/Rev): 13 mph/6 mph
    • Starter: Electric
    • Deck Material: 7 ga
    • Deck Construction: Welded
    • Number of spindles: 3
    • Blade Tip Speed: 18,000 fpm
    • Spindle Material: Ductile Cast Iron
    • Spindle Shaft: 1 in. Steel
    • Spindle Bearings: Sealed Ball Bearing
    • Deck Drive: Belt
    • Deck Engagement: Ogura 250 ft.-lb. Electric Clutch
    • Deck Lift System: Manual
    • Cutting Width: 60 in.
    • Cutting Heights: 1 in.-5 in.
    • Cutting Positions: 9
    • Front Axle: Pivoting/Locking
    • Caster Tires: Ribbed 15 in. x 6-6 in.
    • Drive Tires: Turf 24 in. x 11.5-12 in.
    • Safety: ANSI
    • Hood: Yes
    • Headlights: Optional
    • Seat: High Back w/Full Suspension
    • Hour Meter: Standard
    • Length: 82 in.
    • Width: 63 in. w/o Chute
    • Height: 50 in.
    Drive Train System
    • Hydro-Gear® 21 cc pumps with shock valves
    • Hydro-Gear® 18 cubic inch high torque wheel motors
    • 250 ft.-lb. Ogura® clutch
    • Canister-style air cleaner
    • 13.0 mph fwd/6.0 mph rev
    X-Factor® Deck Design
    • 7-gauge fabricated and welded steel construction: 1/4 in. thick reinforcement plate at spindles
    • 5 in. deep airflow cut chamber
    • (3) Maintenance-free XL Spindles with cast iron housings
    • 1 in. to 5 in. height of cut with 9 settings
    • Heavy-duty rubber discharge chute
    • Self-adjusting belt tensioning
    • Hardened steel blades
    Operator Ergonomics
    • Twin stick controls with dampeners to minimize fatigue
    • Flip-up handles for easy operator mounting and dismounting
    • Large diameter fuel cap for quick re-fueling
    Frame Design
    • Fully welded tubular steel
    • 2.0 in. x 2.0 in. x .188 in. steel tubing
    • Fixed/floating front axle
    Accessories
    • Snow Blade
    • Snowblower
    • Rotary Sweeper
    • Bagger Collection System
    • Electric Deck Lift Kit
    • Flextend™ Shoulder Support System
    • Foldable Rops
    • Hitch Kit
    • Light Kit
    • Mulching Kit
    • Striping Kit

    Specifications

    Engine
    Engine Manufacturer Kawasaki®
    Horse Power 27 hp
    Engine Type Kawasaki® Twin
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: Ribbed 15 in. x 6-6 in.; Drive Tires: Turf 24 in. x 11.5-12 in.
    Fuel Capacity 13 gal. (49 l)
    Deck
    Deck Size 60 in.
    Discharge Type Side; Optional: Bagger, Mulcher

    Compare Models

    		 Print








    Year 2009
    Manufacturer Gravely
    Model 260M XDZ 27 hp Kawasaki Manual Lift
    Style Riding
    Deck
    Deck Size 60 in.
    Discharge Type Side; Optional: Bagger, Mulcher
    Engine
    Engine Manufacturer Kawasaki®
    Horse Power 27 hp
    Engine Type Kawasaki® Twin
    Displacement
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: Ribbed 15 in. x 6-6 in.; Drive Tires: Turf 24 in. x 11.5-12 in.
    Fuel Capacity 13 gal. (49 l)
