2009 Honda VTX1300R

NEW 2009 VTX1300R- $8,999

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

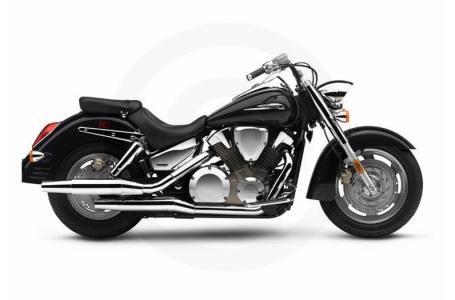

It's not easy categorizing a motorcycle as classically cool and feature-packed as the VTX1300R, so we like to go with “performance-retro”. Check out the 1312cc V-twin engine and staggered dual exhaust. Shift your gaze to the deeply valanced fenders, chrome-hooded headlight, tank-mounted instruments, pullback handlebar, and floorboards with an old-school heel-toe shifter. All that, and Honda's incomparable fit, finish, and overall quality.

    ENGINE
    • Engine Type: 1312cc liquid-cooled 52° V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Induction: Single 38mm constant-velocity carburetor
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    DRIVE TRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
    CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1 inches travel
    • Rear Suspension: Rear: Dual shocks with five-position spring-preload adjustability; 3.7 inches travel
    • Front Brake: Single 336 mm disc with twin-piston caliper
    • Rear Brake: Single 296 mm disc with single-piston caliper
    • Front Tire: 140/80-17
    • Rear Tire: 170/80-15
    DIMENSIONS
    • Rake: (Caster Angle): 32.0°
    • Trail: 144mm (5.7 inches)
    • Wheelbase: 65.7 inches
    • Seat Height: 27.35 inches
    • Curb Weight: 710 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
    FACTORY WARRANTY INFORMATION
    • One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

    Specifications

    Engine
    Engine Type 52° V-twin
    Displacement 1312 cc
    Bore and Stroke 89.5 x 104.3 mm
    Cooling Liquid-cooled
    Compression Ratio 9.2:1
    Fuel System Single 38 mm constant-velocity carburetor
    Ignition Digital with three-dimensional mapping, two spark plugs per cylinder
    Chassis
    Front Suspension 41 mm fork; Travel: 5.1 in.
    Front Brakes 336 mm disc with twin-piston caliper
    Front Tire 140/80-17
    Rear Suspension Dual shocks with five-position spring-preload adjustability; Travel: 3.7 in.
    Rear Brakes 296 mm disc with single-piston caliper
    Rear Tire 170/80-15
    Dimensions
    Dry Weight 710 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Fuel Capacity 4.8 gal. (including 1.0 gal. reserve)
    Wheelbase 65.7 in.
    Seat Height 27.35 in.
    Trail 5.7 in. (144 mm)
    Rake 32.0° Caster Angle
    Transmission
    Transmission Five-speed
    Final Drive Shaft
    General
    Colors Metallic Silver, Metallic Black and Bright Blue Metallic
    Warranty One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model VTX1300R
    Style Cruiser
    MSRP* $10,299.00
    Chassis
    Front Suspension 41 mm fork; Travel: 5.1 in.
    Front Brakes 336 mm disc with twin-piston caliper
    Front Tire 140/80-17
    Rear Suspension Dual shocks with five-position spring-preload adjustability; Travel: 3.7 in.
    Rear Brakes 296 mm disc with single-piston caliper
    Rear Tire 170/80-15
    Dimensions
    Dry Weight 710 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Fuel Capacity 4.8 gal. (including 1.0 gal. reserve)
    Wheelbase 65.7 in.
    MPG
    Seat Height 27.35 in.
    Trail 5.7 in. (144 mm)
    Rake 32.0° Caster Angle
    Engine
    Engine Type 52° V-twin
    Displacement 1312 cc
    Bore and Stroke 89.5 x 104.3 mm
    Cooling Liquid-cooled
    Compression Ratio 9.2:1
    Fuel System Single 38 mm constant-velocity carburetor
    Ignition Digital with three-dimensional mapping, two spark plugs per cylinder
    General
    Speedometer
    Tachometer
    Odometer
    Colors Metallic Silver, Metallic Black and Bright Blue Metallic
    Warranty One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan
    Transmission
    Transmission Five-speed
    Final Drive Shaft
