2009 Kawasaki Ninja® 500R

NINJA 500R-No longer in production! $3,799

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

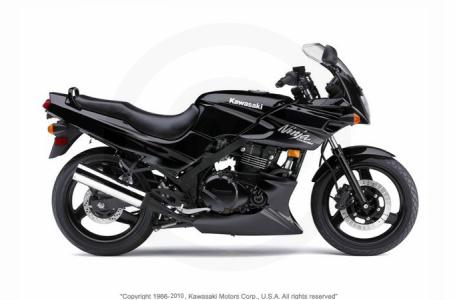

Click here to view full image.
Metallic Diablo Black
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Liquid Cooled Twin-cylinder 498cc Engine
    • Compact parallel-twin design
    • Superior engineering produces sport bike power with broad usable torque
    • Good mass centralization for superior handling
    • Liquid cooling provides consistent engine temperatures and allows closer engine tolerances for more horsepower and long engine life
    • Auxiliary cooling fan maintains optimum temperature for best performance, fuel economy and reliability
    Four Valves per Cylinder
    • Provides maximum valve area for optimum flow
    • Better flow for more power at high rpm and strong low-end torque
    • Compact combustion chamber for increased compression ratio without detonation on today’s gasolines
    34mm CVK Semi-flat Slide Carburetors
    • Precise fuel metering provides uniform power delivery at all engine speeds
    • Quick throttle response
    Digital Ignition
    • Microprocessor-controlled timing never needs adjustment
    • Ultra-responsive to engine needs
    Six-speed Transmission
    • Translates into a gear for all speeds, excellent acceleration and relaxed highway cruising
    • Has a Kawasaki exclusive, the Positive Neutral Finder, which means riders can find neutral easily, every time at a stop with just a lift of the shift pedal from first gear
    Standard Half Fairing
    • Offers rider wind protection for more comfort
    • Incorporates large, easy-to-read instruments with two resettable trip meters
    • Stylish lower fairing completes the Ninja® image
    Double-cradle Steel Box-section Frame
    • High-tensile steel perimeter frame
    • Lightweight, with superior rigidity for more precise handling and better control
    37mm Front Fork
    • Large-diameter fork tubes with thin walls for light weight and exceptional rigidity
    Bottom-link UNI-TRAK® Rear Suspension
    • Progressive rate provides a smoother, more controlled ride
    • Lightweight aluminum components provide quick suspension response
    • Lower center of gravity for better handling
    17-inch Wheels
    • Wide, modern 17-inch rims fit low-profile, high-performance tires
    Front Disc Brake
    • Disc is drilled for better cooling and reduced unsprung weight
    • Dual-piston caliper for increased braking effectiveness
    Rear Disc Brake
    • Powerful and controllable
    • Single-piston caliper
    Sidestand and Centerstand
    • Sidestand permits easy parking, while centerstand makes for easy cleaning or servicing
    Budget Friendly
    • Affordable suggested retail price
    Specifications
    • Engine: Four-stroke, DOHC, parallel twin
    • Displacement: 498cc
    • Starting: Electric
    • Bore x stroke: 74.0 x 58.0mm
    • Compression ratio: 10.8:1
    • Cooling: Liquid
    • Carburetion: Keihin CVK34 x 2
    • Ignition: TCBI with digital advance
    • Transmission: Six-speed
    • Final drive: Chain
    • Frame: High-tensile steel, perimeter design
    • Rake / trail: 27 degrees / 3.6 in.
    • Front suspension / wheel travel: 37mm hydraulic telescopic fork / 5.1 in.
    • Rear suspension / wheel travel: UNI-TRAK® system with single shock / 3.9 in.
    • Front tire: 110/70-17 tubeless
    • Rear tire: 130/70x17 tubeless
    • Front brake / rear brake: Hydraulic disc / Disc
    • Overall length: 82.5 in.
    • Overall width: 27.6 in.
    • Overall height: 45.7 in.
    • Ground clearance: 4.7 in.
    • Seat height: 30.5 in.
    • Curb weight: 434.4 lbs.
    • Fuel capacity: 4.8 gal.
    • Wheelbase: 56.5 in.
    • Color: Metallic Diablo Black, Candy Plasma Blue
    • Good Times™ Protection Plan: 12, 24, 36 or 48 months
    • Warranty: 12 Months

    Specifications

    Engine
    Engine Type Four-stroke, DOHC, parallel twin
    Displacement 498 cc
    Bore and Stroke 74.0 x 58.0 mm
    Cooling Liquid
    Compression Ratio 10.8:1
    Fuel System Keihin CVK34 x 2
    Ignition TCBI with digital advance
    Chassis
    Front Suspension 37 mm hydraulic telescopic fork; Travel: 5.1 in.
    Front Brakes Hydraulic disc
    Front Tire 110/70-17 tubeless
    Rear Suspension UNI-TRAK® system with single shock; Travel: 3.9 in.
    Rear Brakes Disc
    Rear Tire 130/70x17 tubeless
    Dimensions
    Dry Weight 434.4 lbs
    Fuel Capacity 4.8 gal.
    Wheelbase 56.5 in.
    Seat Height 30.5 in.
    Trail 3.6 in.
    Rake 27°
    Transmission
    Transmission Six-speed
    Final Drive Chain
    General
    Colors Metallic Diablo Black, Candy Plasma Blue
    Warranty Standard: 12 months; Optional: Good Times™ Protection Plan: 12, 24, 36 or 48 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model Ninja® 500R
    Style Sport
    MSRP* $5,499.00
    Chassis
    Front Suspension 37 mm hydraulic telescopic fork; Travel: 5.1 in.
    Front Brakes Hydraulic disc
    Front Tire 110/70-17 tubeless
    Rear Suspension UNI-TRAK® system with single shock; Travel: 3.9 in.
    Rear Brakes Disc
    Rear Tire 130/70x17 tubeless
    Dimensions
    Dry Weight 434.4 lbs
    Fuel Capacity 4.8 gal.
    Wheelbase 56.5 in.
    MPG
    Seat Height 30.5 in.
    Trail 3.6 in.
    Rake 27°
    Engine
    Engine Type Four-stroke, DOHC, parallel twin
    Displacement 498 cc
    Bore and Stroke 74.0 x 58.0 mm
    Cooling Liquid
    Compression Ratio 10.8:1
    Fuel System Keihin CVK34 x 2
    Ignition TCBI with digital advance
    General
    Speedometer
    Tachometer
    Odometer
    Colors Metallic Diablo Black, Candy Plasma Blue
    Warranty Standard: 12 months; Optional: Good Times™ Protection Plan: 12, 24, 36 or 48 months
    Transmission
    Transmission Six-speed
    Final Drive Chain
