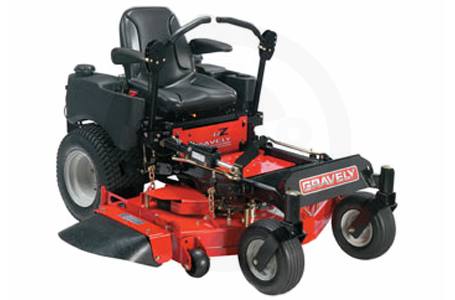

2008 Gravely 48Z 48” Deck
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Quick…responsive…and highly maneuverable…one or more of the Compact zero-turns would be a moneymaking addition to any commercial mower fleet…don’t be misled by the size…there’s plenty of power here…along with a list of robust commercial components…and a lot of design-engineered performance advantages that’ll have you profitably blowing through more grass in less time.

    Drive Train System
    • Commercial-duty Hydro-Gear® ZT 2800 transaxle
    • 125 ft-lb Warner ® clutch
    • 8.0 mph fwd/4.0 mph rev
    • 20- or 21-inch diameter low-profile rear tires
    • 13-inch diameter ribbed front tires
    Deck Design
    • 10-guage fabricated and welded steel construction: 1/4" thick reinforcement plate at spindles
    • 5" deep airflow cut chamber
    • (3) Maintenance-free XL Spindles with cast iron housings
    • Heavy-duty rubber discharge chute
    • Self-adjusting belt tensioning
    Operator Ergonomics
    • High-back seat; armrest, adjustable seat; spring suspension
    • Double Z footboard for added comfort
    • Twin stick controls with dampeners to minimize fatigue
    • Flip-up handles for easy operator mounting and dismounting
    • Foot-operated deck lift with 1" to 5" height of cut with 9 settings
    • Large diameter fuel cap for quick re-fueling
    Frame Design
    • Fully welded tubular steel
    • 2.0" X 2.0" X .188" steel tubing
    Specifications
    • Warranty: 2-year
    • Engine Manufacturer: Kawasaki® Twin
    • Engine Power: 19 hp
    • Drive System: Hydrostatic
    • Fuel Tank: 7 gal. (26.5 l)
    • Ground Speed (Forward/Rev): 8 mph/4 mph
    • Starter: Electric
    • Deck Material: 10 ga
    • Deck Construction: Welded
    • Number of spindles: 3
    • Blade Tip Speed (FPM): 18,000
    • Spindle Material: Ductile Cast Iron
    • Spindle Shaft: 1 in. Steel
    • Spindle Bearings: Sealed Ball Bearing
    • Deck Drive: Belt
    • Deck Engagement: Warner® 125 ft-lb Electric Clutch
    • Deck Lift System: Manual
    • Cutting Width: 48 in.
    • Cutting Heights: 1 in.-5 in.
    • Cutting Positions: 9
    • Front Axle: Rigid
    • Caster Tires: 13 x 5-6
    • Drive Tires: 21x7-10
    • Safety: ANSI
    • Hood: No
    • Headlights: Optional
    • Seat: High Back w/Seat Springs
    • Hour Meter: Standard
    • Weight: 805 lbs.
    • Length: 71.5 in.
    • Width: 50 in. w/o Chute
    • Height: 42 in.

    Specifications

    Engine
    Engine Manufacturer Kawasaki® Twin
    Horse Power 19 hp
    Engine Type Twin
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: 13 x 5-6; Drive Tires: 21x7-10
    Fuel Capacity 7 gal. (26.5 l)
    Deck
    Deck Size 48 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher

    Compare Models

    		 Print








    Year 2008
    Manufacturer Gravely
    Model 48Z 48” Deck
    Style Riding
    Deck
    Deck Size 48 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher
    Engine
    Engine Manufacturer Kawasaki® Twin
    Horse Power 19 hp
    Engine Type Twin
    Displacement
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: 13 x 5-6; Drive Tires: 21x7-10
    Fuel Capacity 7 gal. (26.5 l)
